Detail produk:
|
| Penggunaan: | Peralatan Rumah Tangga,Sepeda Listrik | Penggantian: | disikat |
|---|---|---|---|
| Kecepatan (rpm): | 12-1360rpm | Jenis: | Gear Motor dengan Encoder |
| Efisiensi: | yaitu 1 | Konstruksi: | Magnet permanen |
| Bahan: | Besi tahan karat | Voltase: | 6V/12V/24V |
| Cahaya Tinggi: | 60RPM Motor DC Gear Kecil,25mm Encoder Motor DC Gear Kecil,motor dc encoder 60RPM |
||

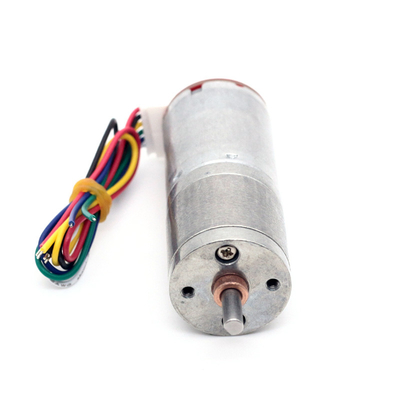

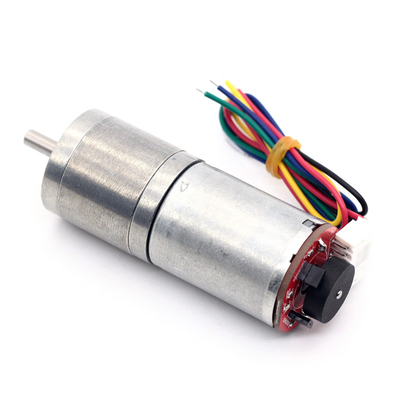

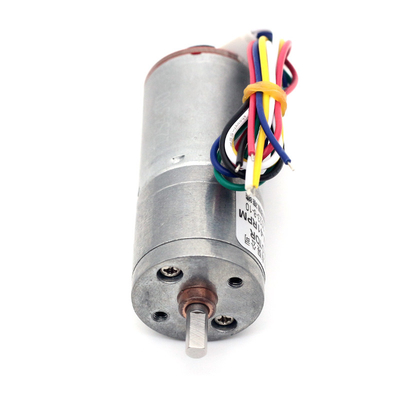

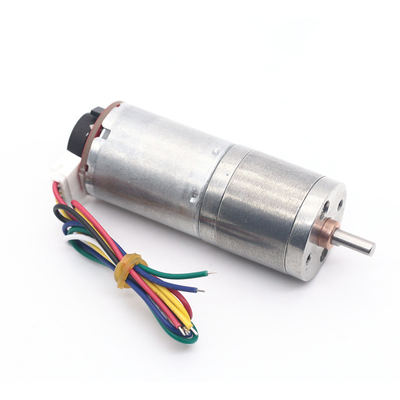

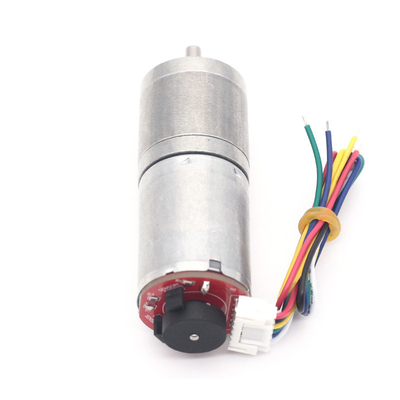

25mm Encoder Motor DC Gear Kecil Torsi Tinggi 6v 60RPM Magnet Permanen
25mm Dc Gear Motor Dengan Encoder 6v 12v 24v Motor Listrik Torsi Tinggi
Tegangan: DC6V 12V 24V
Kecepatan Tanpa Beban: 12RPM, 16RPM, 35RPM, 60RPM, 77RPM, 130RPM, 170RPM, 280RPM, 620RPM, 1360RPM
Kesalahan: ±5%
Diameter Motor: 24.5mm
Panjang Tubuh Motor: 40mm (ref)
Diameter Poros Keluaran: 4mm (tipe D)
Panjang Poros Keluaran: sekitar 9.5mm
Diameter Gearbox: 25mm
Detail Ukuran Gearbox, silakan lihat tabel
Metode pengkabelan:
Kabel Merah - catu daya positif motor (+) (perubahan positif dan negatif motor putaran akan berubah)
Kawat Putih - catu daya negatif motor (-) (perubahan positif dan negatif motor, putaran akan berubah))
Kabel Kuning - umpan balik sinyal (motor satu putaran memiliki 11 sinyal)
Kawat Hijau - umpan balik sinyal (motor satu putaran memiliki 11 sinyal)
Kabel Biru - positif dari catu daya encoder(+)(3.3-5V), tidak mungkin salah
Kabel Hitam - negatif dari catu daya encoder (-)(3.3-5V), tidak mungkin salah
Lembaran data:
| Tidak ada beban | Keluaran | Macet | ||||||||
| Tegangan Terukur | rpm | Saat ini (ma) | rpm | Saat ini (ma) | Torsi (Kg.cm) | Keluaran (W) | Torsi (Kg.cm) | Saat ini (ma) | Rasio (1:1) | Ukuran L) |
| 6v | 1363 | 80 | 1090 | 380 | 0.1 | 2 | 0.8 | 900 | 4.4 | 18 |
| 6v | 646 | 80 | 516 | 380 | 0,23 | 2 | 1.5 | 900 | 9.6 | 17.5 |
| 6v | 281 | 80 | 238 | 380 | 0,5 | 2 | 4 | 900 | 21 | 19 |
| 6v | 176 | 80 | 150 | 380 | 0,85 | 2 | 5 | 900 | 35 | 21 |
| 6v | 133 | 80 | 113 | 380 | 1.1 | 2 | 6 | 900 | 45 | 21 |
| 6v | 77 | 80 | 65 | 380 | 1.95 | 2 | 10 | 900 | 78 | 23 |
| 6v | 58 | 80 | 46 | 380 | 3 | 2 | 15 | 900 | 103 | 25 |
| 6v | 35 | 80 | 28 | 380 | 4 | 2 | 25 | 900 | 171 | 25 |
| 6v | 26 | 80 | 20 | 380 | 5 | 2 | 35 | 900 | 226 | 27 |
| 6v | 16 | 80 | 13 | 380 | 9 | 2 | Terlarang | 900 | 377 | 27 |
| 6v | 12 | 80 | 10 | 380 | 10 | 2 | Terlarang | 900 | 500 | 18 |
| 12v | 1931 | 50 | 1351 | 250 | 0.11 | 4 | 0,44 | 1200 | 4.4 | 17.5 |
| 12v | 915 | 50 | 640 | 250 | 0.24 | 4 | 1 | 1200 | 9.6 | 19 |
| 12v | 399 | 50 | 279 | 250 | 0,55 | 4 | 2.2 | 1200 | 21 | 21 |
| 12v | 250 | 50 | 175 | 240 | 0,95 | 4 | 38 | 1200 | 35 | 21 |
| 12v | 188 | 50 | 131 | 240 | 1.26 | 4 | 5 | 1200 | 45 | 23 |
| 12v | 108 | 50 | 75 | 240 | 2.1 | 4 | 8.4 | 1200 | 78 | 23 |
| 12v | 82 | 50 | 57 | 240 | 2.88 | 4 | 11 | 1200 | 103 | 25 |
| 12v | 50 | 50 | 40 | 240 | 4.78 | 4 | 18 | 1200 | 171 | 25 |
| 12v | 37 | 50 | 29 | 240 | 6.3 | 4 | 14 | 1200 | 226 | 27 |
| 12v | 22 | 50 | 17 | 240 | 10 | 4 | Terlarang | 1200 | 377 | 27 |
| 12v | 17 | 50 | 13 | 240 | 14 | 4 | Terlarang | 1200 | 500 | 18 |
| 24v | 863 | 10 | 604 | 70 | 0,083 | 1 | 0.4 | 220 | 4.4 | 17.5 |
| 24v | 409 | 10 | 280 | 70 | 0.17 | 1 | 0,88 | 220 | 9.6 | 19 |
| 24v | 178 | 10 | 125 | 70 | 0.4 | 1 | 2 | 220 | 21 | 21 |
| 24v | 111 | 10 | 80 | 70 | 0,64 | 1 | 3.2 | 220 | 35 | 21 |
| 24v | 84 | 10 | 60 | 70 | 0,85 | 1 | 4.2 | 220 | 45 | 23 |
| 24v | 48 | 10 | 35 | 70 | 1.4 | 1 | 7.4 | 220 | 78 | 23 |
| 24v | 36 | 10 | 25 | 70 | 1.9 | 1 | 9.5 | 220 | 103 | 23 |
| 24v | 22 | 10 | 15 | 70 | 3.2 | 1 | 16 | 220 | 171 | 25 |
| 24v | 17 | 10 | 12 | 70 | 4.2 | 1 | 21 | 220 | 226 | 25 |
| 24v | 10 | 10 | 7 | 70 | 7 | 1 | 35 | 220 | 377 | 27 |
| 24v | 7.5 | 10 | 5 | 70 | 9.5 | 1 | 47 | 220 | 500 | 27 |
