Detail produk:
|
| Penggunaan: | Untuk Gearmotor Mobil Pintar Robot DIY | Penggantian: | Disikat |
|---|---|---|---|
| Jenis: | Gear Motor dengan kit Encoder | Efisiensi: | YAITU 1 |
| Konstruksi: | MAGNET PERMANEN | Bahan: | Baja tahan karat |
| Tegangan: | 6V/12V/24V | Kecepatan Rotasi tanpa pemuatan: | 7,5-1931RPM |

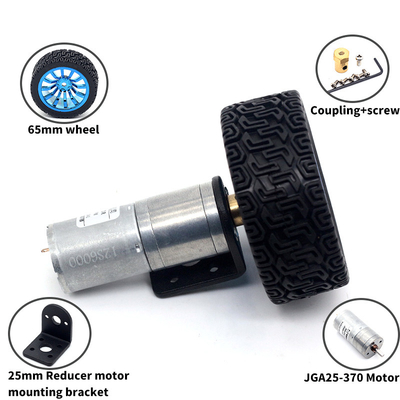

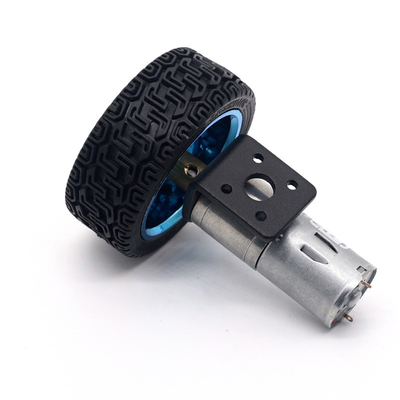

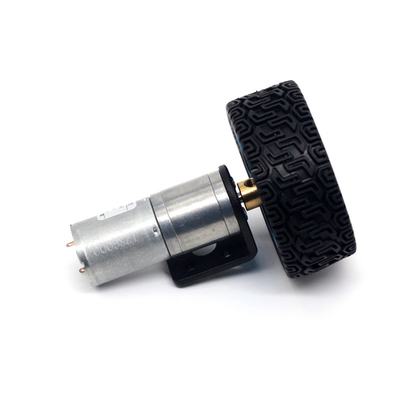

65mm Wheel Coupling Kit Encoder Gear Motor 170RPM Untuk Mobil Robot DIY
DiY Arduino Geared Motors 6V 12V 24V DC Gear Motor Dengan Encoder Dan Kit Kopling Roda 65mm
Spesifikasi:
Tegangan: DC6V 12V 24V
Kecepatan tanpa beban: 12RPM, 16RPM, 35RPM, 60RPM, 77RPM, 130RPM, 170RPM, 280RPM, 620RPM, 1360RPM
Kesalahan: ± 5%
Diameter motor: 24,5 mm
Kabel:
Red Wire - pasokan daya positif dari motor ((+)
Wire Hitam - pasokan listrik negatif dari motor ((-) Green Wire - pasokan listrik negatif dari encoder ((-) (positif dan pasokan listrik negatif dari encoder tidak memungkinkan menghubungkan salah;Blue Wire - pasokan listrik positif encoder ((+) (sumber daya positif dan negatif encoder tidak memungkinkan menghubungkan salah, ((5-12v) Wire Kuning - umpan balik sinyal (11 sinyal per motor berputar lingkaran) Wire Putih - umpan balik sinyal (11 sinyal per motor berputar lingkaran)
Panjang tubuh motor: 40mm (ref)
Diameter poros output: 4mm ((tipe D)
Panjang poros output: sekitar 9,5 mm
Diameter kotak gigi: 25 mm
Ukuran gearbox Detail, silakan lihat tabel
Metode kabel:
| Tidak ada beban | Output | Tunggu | ||||||||
| Tegangan nominal | rpm | Saat ini (ma) | rpm | Saat ini (ma) | Torsi ((Kg.cm) | Output ((W) | Torsi ((Kg.cm) | Saat ini (ma) | Rasio (1:1) | Ukuran ((L) |
| 6v | 1363 | 80 | 1090 | 380 | 0.1 | 2 | 0.8 | 900 | 4.4 | 18 |
| 6v | 646 | 80 | 516 | 380 | 0.23 | 2 | 1.5 | 900 | 9.6 | 17.5 |
| 6v | 281 | 80 | 238 | 380 | 0.5 | 2 | 4 | 900 | 21 | 19 |
| 6v | 176 | 80 | 150 | 380 | 0.85 | 2 | 5 | 900 | 35 | 21 |
| 6v | 133 | 80 | 113 | 380 | 1.1 | 2 | 6 | 900 | 45 | 21 |
| 6v | 77 | 80 | 65 | 380 | 1.95 | 2 | 10 | 900 | 78 | 23 |
| 6v | 58 | 80 | 46 | 380 | 3 | 2 | 15 | 900 | 103 | 25 |
| 6v | 35 | 80 | 28 | 380 | 4 | 2 | 25 | 900 | 171 | 25 |
| 6v | 26 | 80 | 20 | 380 | 5 | 2 | 35 | 900 | 226 | 27 |
| 6v | 16 | 80 | 13 | 380 | 9 | 2 | Dilarang | 900 | 377 | 27 |
| 6v | 12 | 80 | 10 | 380 | 10 | 2 | Dilarang | 900 | 500 | 18 |
| 12v | 1931 | 50 | 1351 | 250 | 0.11 | 4 | 0.44 | 1200 | 4.4 | 17.5 |
| 12v | 915 | 50 | 640 | 250 | 0.24 | 4 | 1 | 1200 | 9.6 | 19 |
| 12v | 399 | 50 | 279 | 250 | 0.55 | 4 | 2.2 | 1200 | 21 | 21 |
| 12v | 250 | 50 | 175 | 240 | 0.95 | 4 | 38 | 1200 | 35 | 21 |
| 12v | 188 | 50 | 131 | 240 | 1.26 | 4 | 5 | 1200 | 45 | 23 |
| 12v | 108 | 50 | 75 | 240 | 2.1 | 4 | 8.4 | 1200 | 78 | 23 |
| 12v | 82 | 50 | 57 | 240 | 2.88 | 4 | 11 | 1200 | 103 | 25 |
| 12v | 50 | 50 | 40 | 240 | 4.78 | 4 | 18 | 1200 | 171 | 25 |
| 12v | 37 | 50 | 29 | 240 | 6.3 | 4 | 14 | 1200 | 226 | 27 |
| 12v | 22 | 50 | 17 | 240 | 10 | 4 | Dilarang | 1200 | 377 | 27 |
| 12v | 17 | 50 | 13 | 240 | 14 | 4 | Dilarang | 1200 | 500 | 18 |
| 24v | 863 | 10 | 604 | 70 | 0.083 | 1 | 0.4 | 220 | 4.4 | 17.5 |
| 24v | 409 | 10 | 280 | 70 | 0.17 | 1 | 0.88 | 220 | 9.6 | 19 |
| 24v | 178 | 10 | 125 | 70 | 0.4 | 1 | 2 | 220 | 21 | 21 |
| 24v | 111 | 10 | 80 | 70 | 0.64 | 1 | 3.2 | 220 | 35 | 21 |
| 24v | 84 | 10 | 60 | 70 | 0.85 | 1 | 4.2 | 220 | 45 | 23 |
| 24v | 48 | 10 | 35 | 70 | 1.4 | 1 | 7.4 | 220 | 78 | 23 |
| 24v | 36 | 10 | 25 | 70 | 1.9 | 1 | 9.5 | 220 | 103 | 23 |
| 24v | 22 | 10 | 15 | 70 | 3.2 | 1 | 16 | 220 | 171 | 25 |
| 24v | 17 | 10 | 12 | 70 | 4.2 | 1 | 21 | 220 | 226 | 25 |
| 24v | 10 | 10 | 7 | 70 | 7 | 1 | 35 | 220 | 377 | 27 |
| 24v | 7.5 | 10 | 5 | 70 | 9.5 | 1 | 47 | 220 | 500 | 27 |
